Description
A Leader Of Drone intelligence

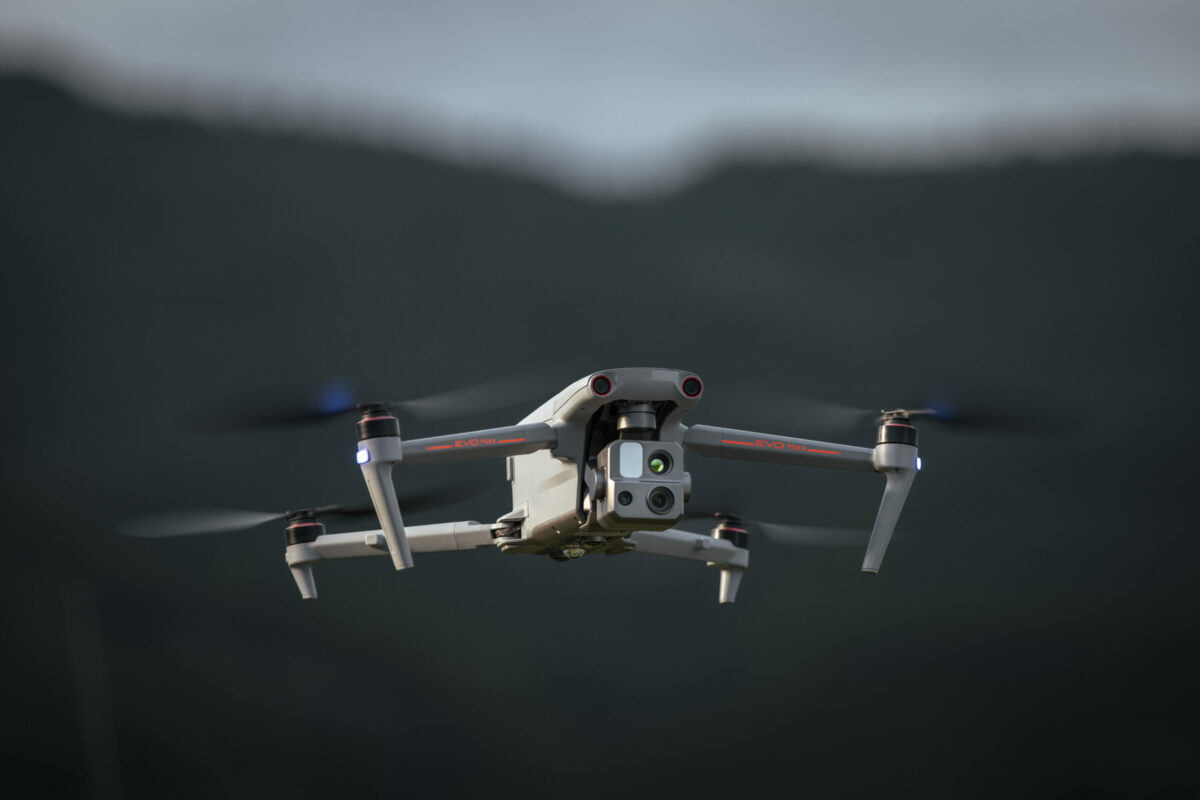

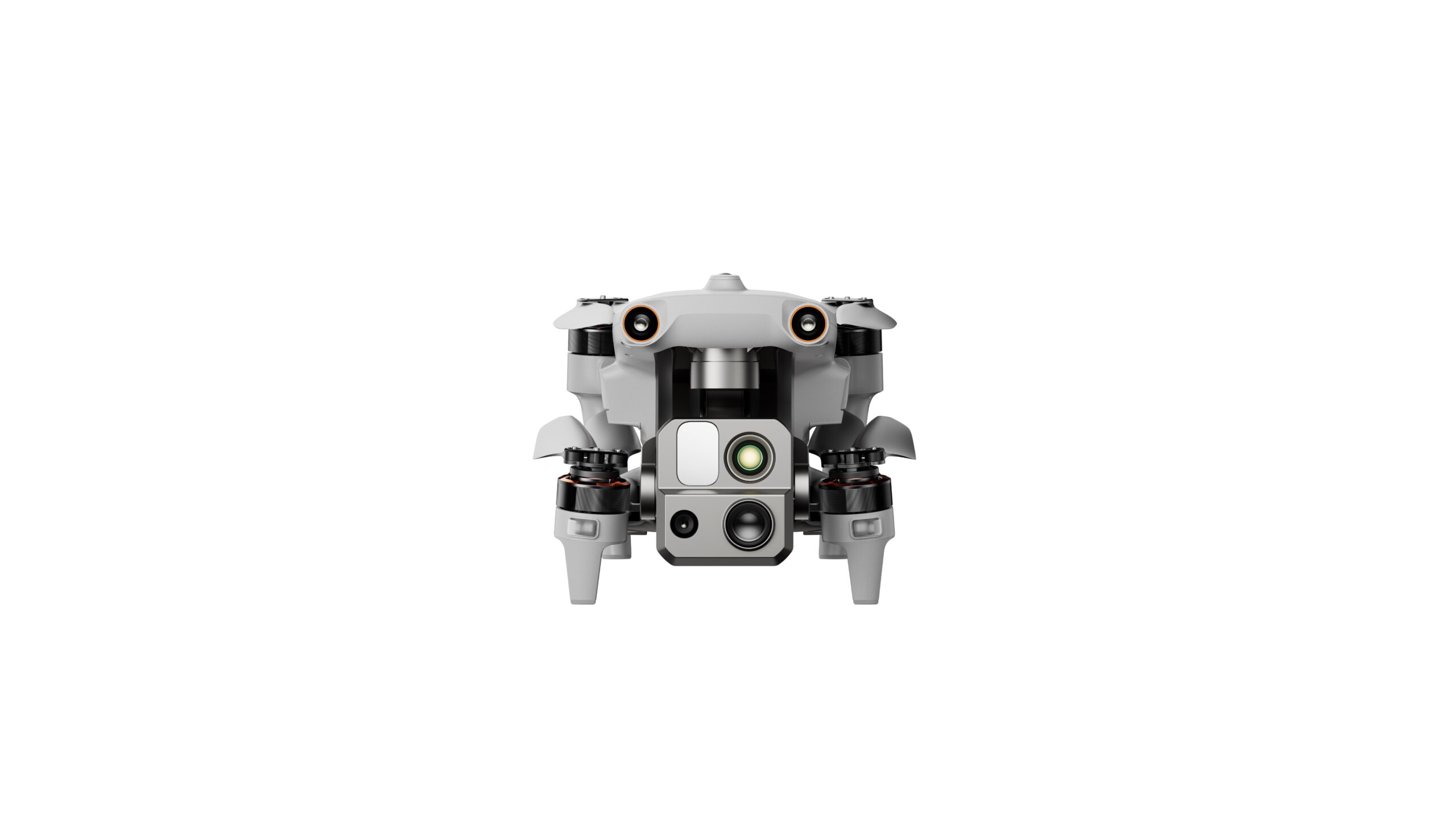

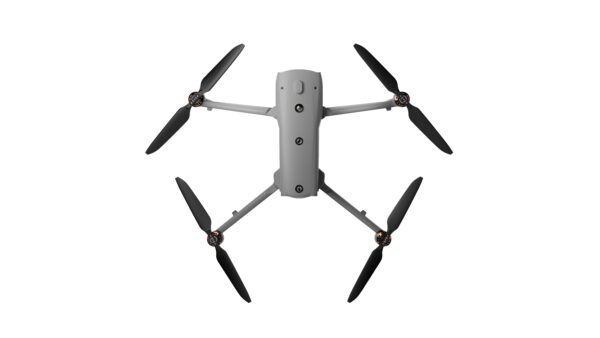

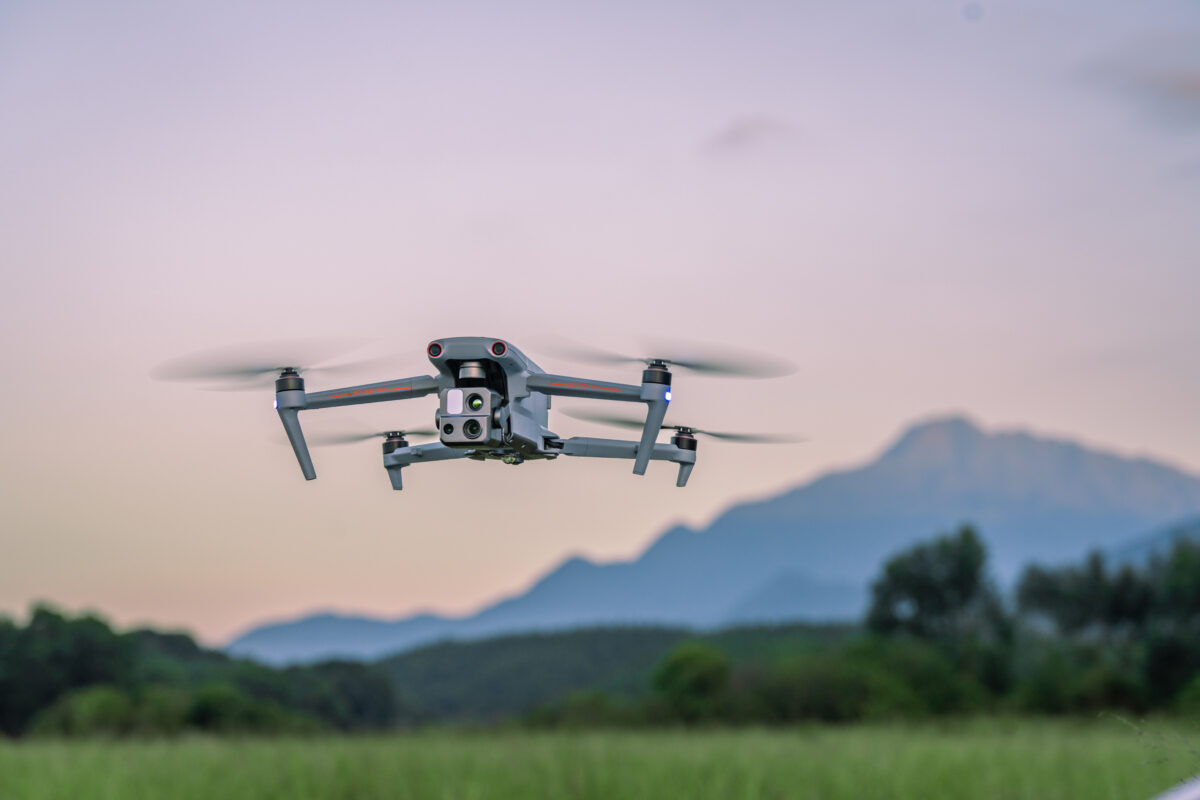

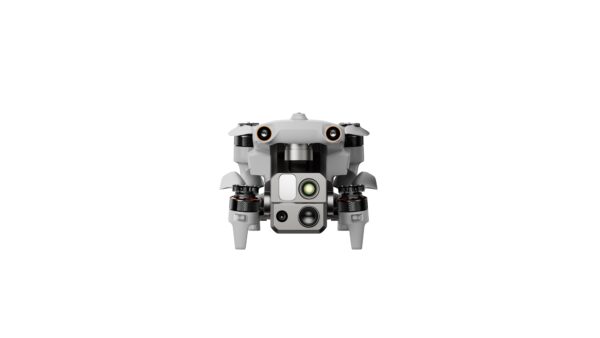

The EVO Max Series brings powerful technologies and advanced autonomy to users. EVO Max assesses complex environments to create real-time 3D flight paths for unparalleled obstacle avoidance. Advanced sensors make flight in GPS unavailable areas possible and the incredible new thermal payload unlocks new object identification and tracking scenarios. With a foldable, weather-resistant design, the EVO Max is as portable as it is capable.
Platform Capability
- 42 mins Max. flight time
- IP43 Weather Rating
- 27mph Max. Wind Resistance
- 23,000 ft Service Ceiling
- 12.4 mile Image Transmission Range
No Blind Spots
Ultimate Obstacle Avoidance
EVO Max is the only commercial drone that combines traditional binocular vision systems with millimeter wave radar technology. This allows the EVO Max’s onboard Autel Autonomy Engine to perceive objects down to 0.5 inch, eliminating blind spots and enabling operation in low light or rainy conditions.
*OA performance varies with drone speed, lighting, and flying
conditions and is not meant to replace pilot responsibility.
Autel SkyLink 3.0
The EVO Max SkyLink 3.0 system comes with 6 antennas, 4 frequency bands, AES-256 encryption, and optional 4G integration to provide users with the most advanced flight capabilities ever in an EVO.
12.4 miles
Image Transmission Distance
1080p/60fps
Real-Time Image Quality
900MHz/2.4GHz/5.2GHz/5.8GHz**
Frequency Bands
<150ms
Latency
*This feature will be available in a future update.
**5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC

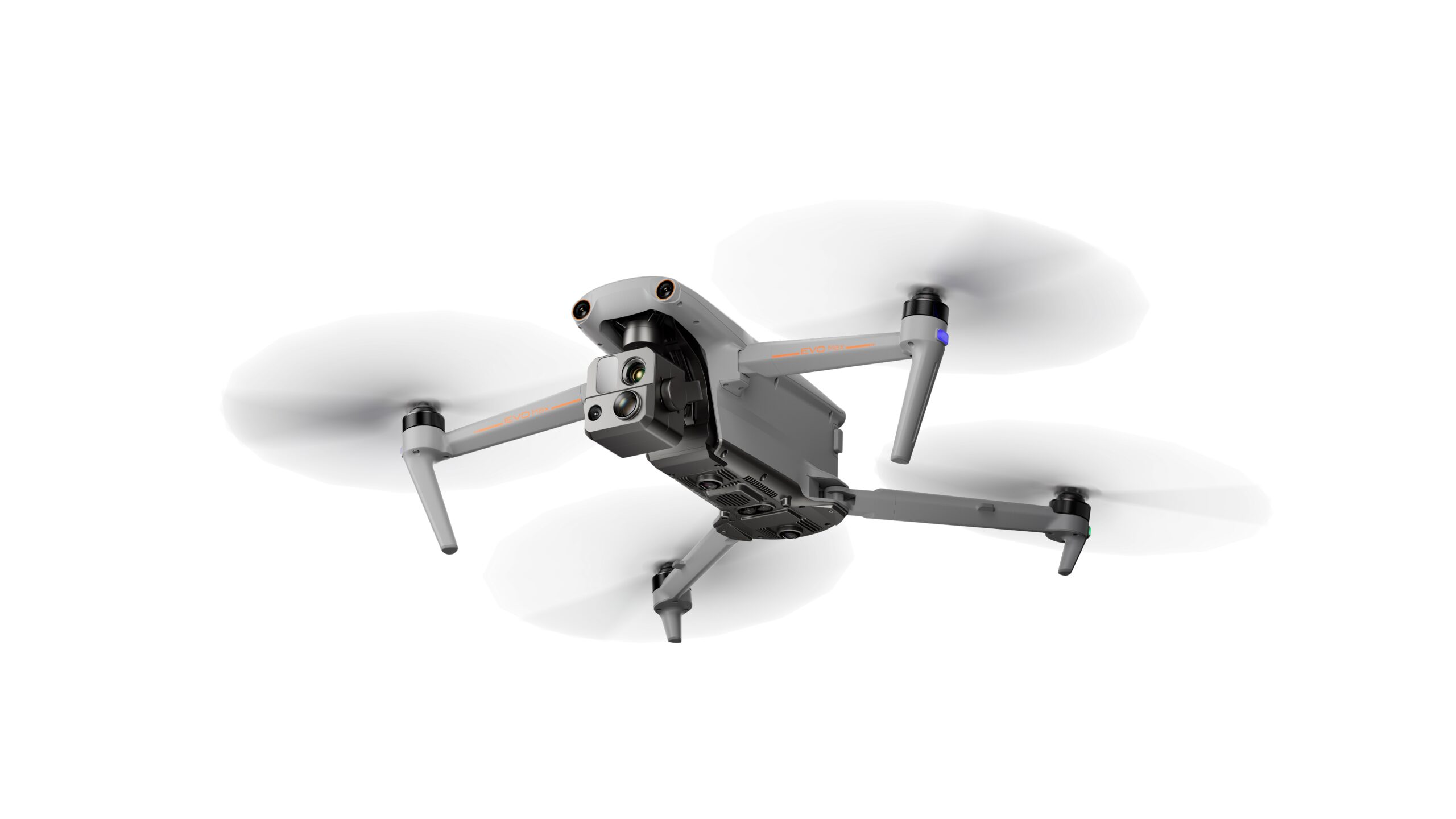

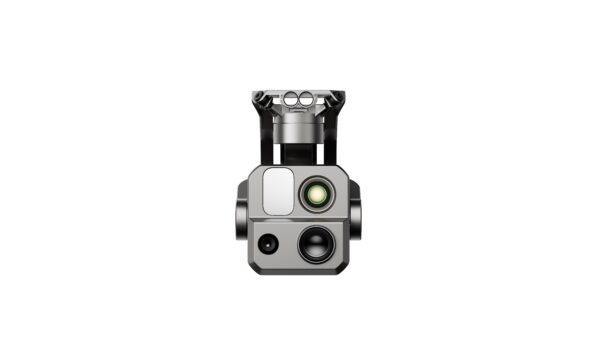

EVO MAX 4T
- 50 MP Wide Camera
- 48 MP Zoom Camera
- 8K 10x Optical Zoom
- 160x Max. Hybrid Zoom
- 640×512 Thermal Resolution
- Laser Rangefinder

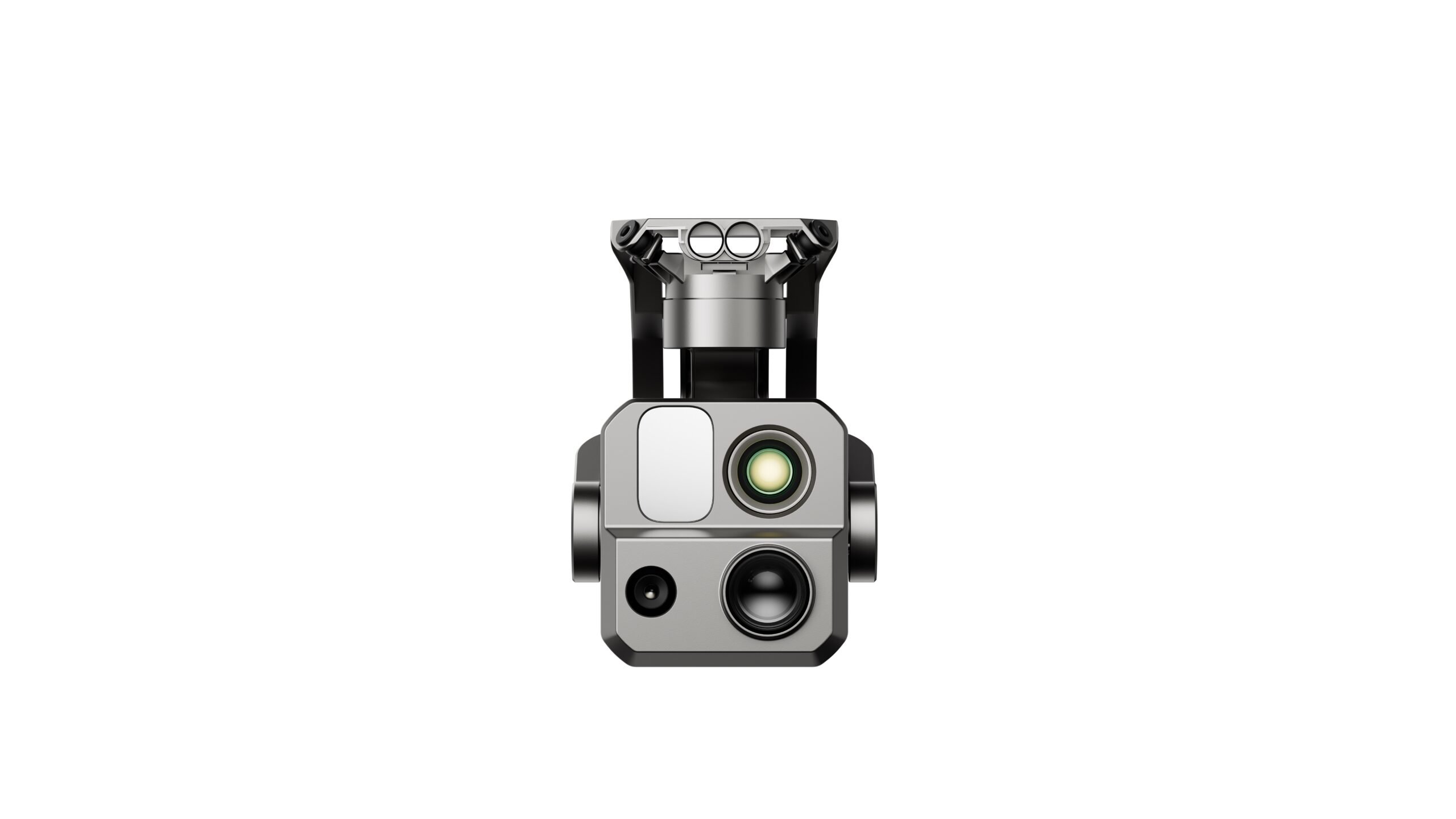

Wide Camera – 50MP, 1/1.28″ CMOS, Aperture f/1.9, DFVO 85° Equivalent 23mm
Zoom Camera – 48MP 8K 10x Optical Zoom, Aperture f/2.8-f/4.8
Thermal Resolution 640×512, Aperture 13mm, 16X Digital Zoom, Temperature measurement Range -20°C to 550°
Laser Rangefinder Measuring Range 5 – 1200m, Measurement Accuracy + 1m
EVO MAX 4N
Starlight Camera – 2.3MP LUX: 0.0001, ISO: 450000 Equivalent: 41.4mm
Wide Camera – 50MP, 1/1.28″ CMOS, Aperture f/1.9, DFVO 85° Equivalent 23mm
Thermal Resolution 640×512, Aperture 9.1mm, 16X Digital Zoom, Temperature measurement Range -20°C to 550°
Laser Rangefinder Measuring Range 5 – 1200m, Measurement Accuracy + 1m
