Description
“N” for Night Vision

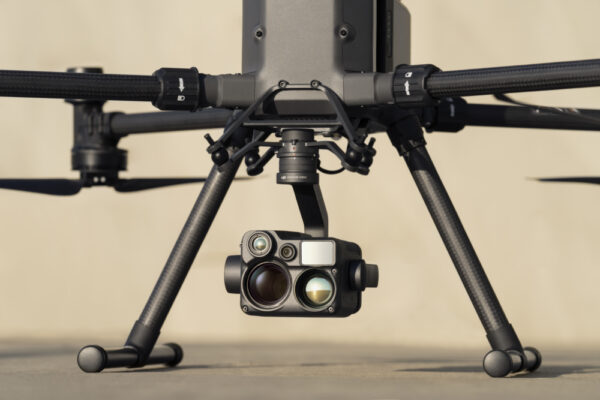

The Zenmuse H20N integrates starlight sensors into its zoom and wide-angle cameras. Pair this with two zoom thermal cameras and a laser rangefinder, and you have a versatile hybrid payload that rises to the occasion.
Infrared Zoom
Dual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm)
8x Zoom (Equivalent Focal Length: 196 mm)
Pierce Through the Veil
Night Vision Zoom Camera
Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom
Low-Light Details

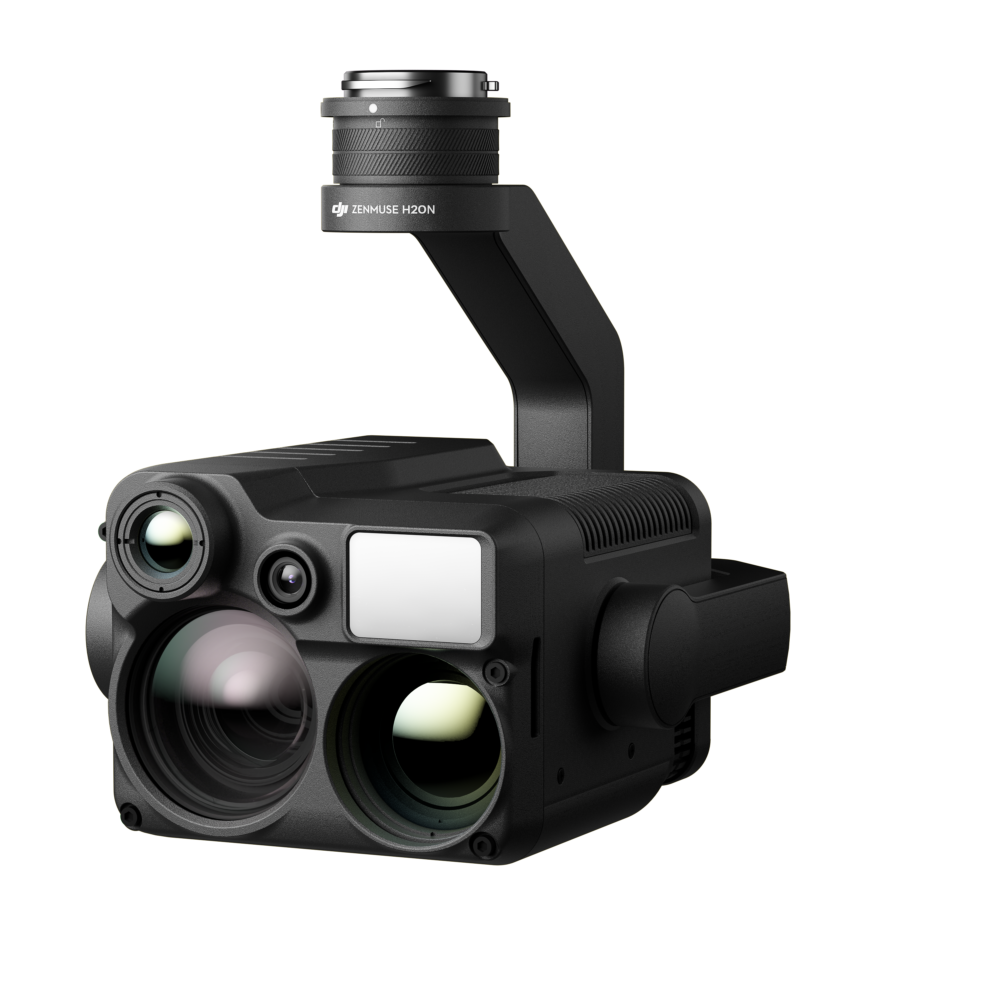

- Product Name: Zenmuse H20N
- Dimensions: 178x135x161 mm
- Weight: 878±5 g
- Protection Rating: IP44
- Laser Safety: Class 1M (IEC 60825-1:2014)

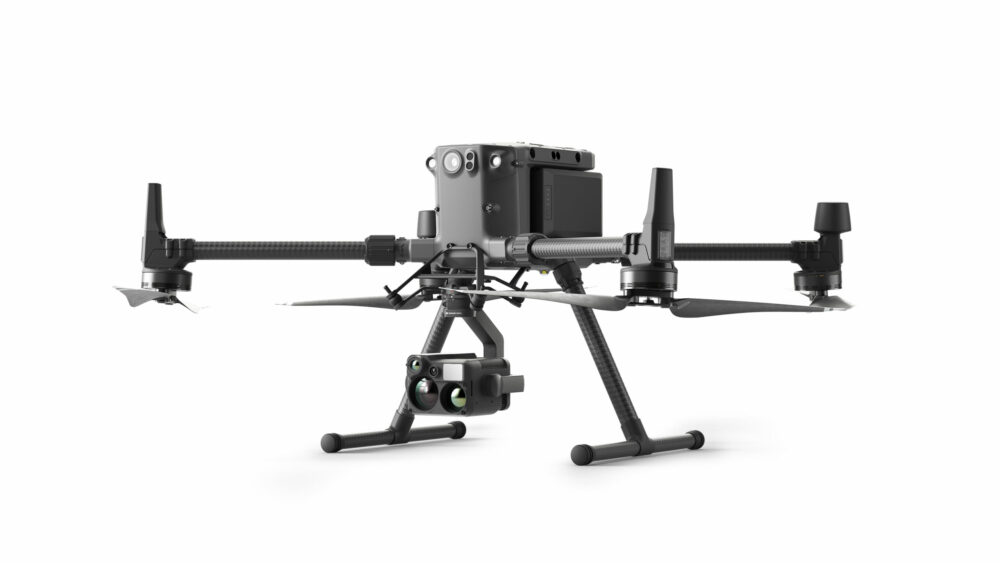

- Supported Aircraft: Matrice 300 RTK
Gimbal
- Angular Vibration Range: ±0.01°
- Mount: Detachable
Zoom Camera
- Sensor: 1/1.8″ CMOS; Effective Pixels: 4M
- Lens: Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm) | Aperture: f/2.8-f/11 (day); f/1.6-f/11 (night) | Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Wide Camera
- Sensor: 1/2.7″ CMOS; Effective Pixels: 2M
- Lens: DFOV: 73.6° | Focal Length: 4.5 mm (equivalent: approximately 29 mm) | Aperture: f/2.8 | Focus: 1 m to ∞
Tele Infrared Thermal Camera
- Thermal Imager: Uncooled VOx Microbolometer
- Lens: DFOV: 12.5° | Focal Length: 44.5 mm (equivalent: approximately 196 mm) | Aperture: f/1.2 | Focus: 45 m to ∞
Wide Infrared Thermal Camera
- Thermal Imager: Uncooled VOx Microbolometer
- Lens: DFOV: 45.5° | Focal Length: 12 mm (equivalent: approximately 53 mm) | Aperture: f/1.0 | Focus: 5 m to ∞
Laser Range Finder
- Wavelength: 905 nm
- Maximum Power: 3.5 mW
- Single Pulse Width: 6 ns
- Measuring Accuracy: ± (0.2 m + target distance x 0.15%)
- Measuring Range: 3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)
Storage
- Supported microSD Cards: Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
- Supported File System: exFAT
Environment
- Operating Temperature: -20° to 50° C (-4 to 122°F)
- Storage Temperature: -20° to 60° C (-4 to 140°F)
