Description

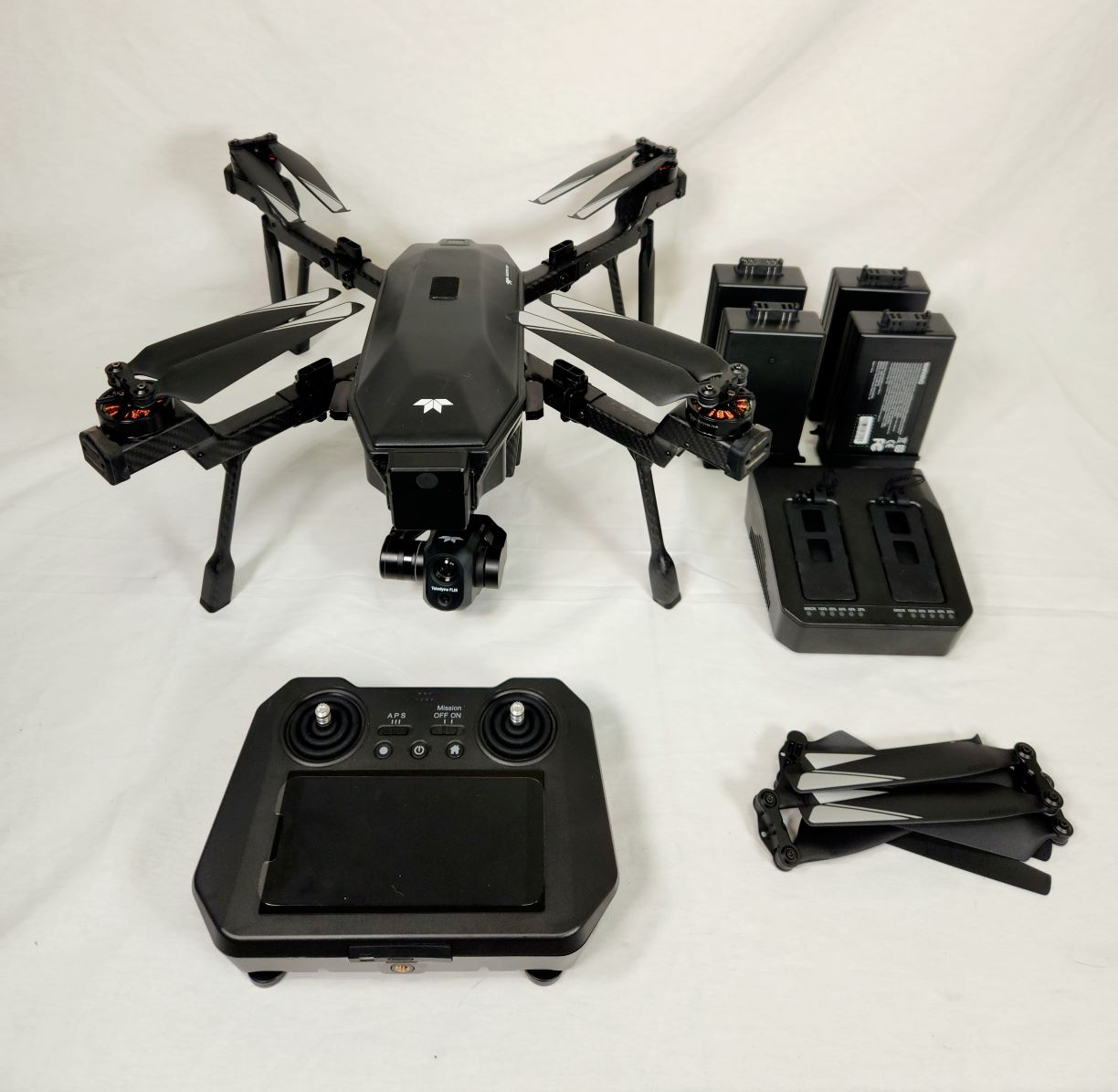

What’s Included

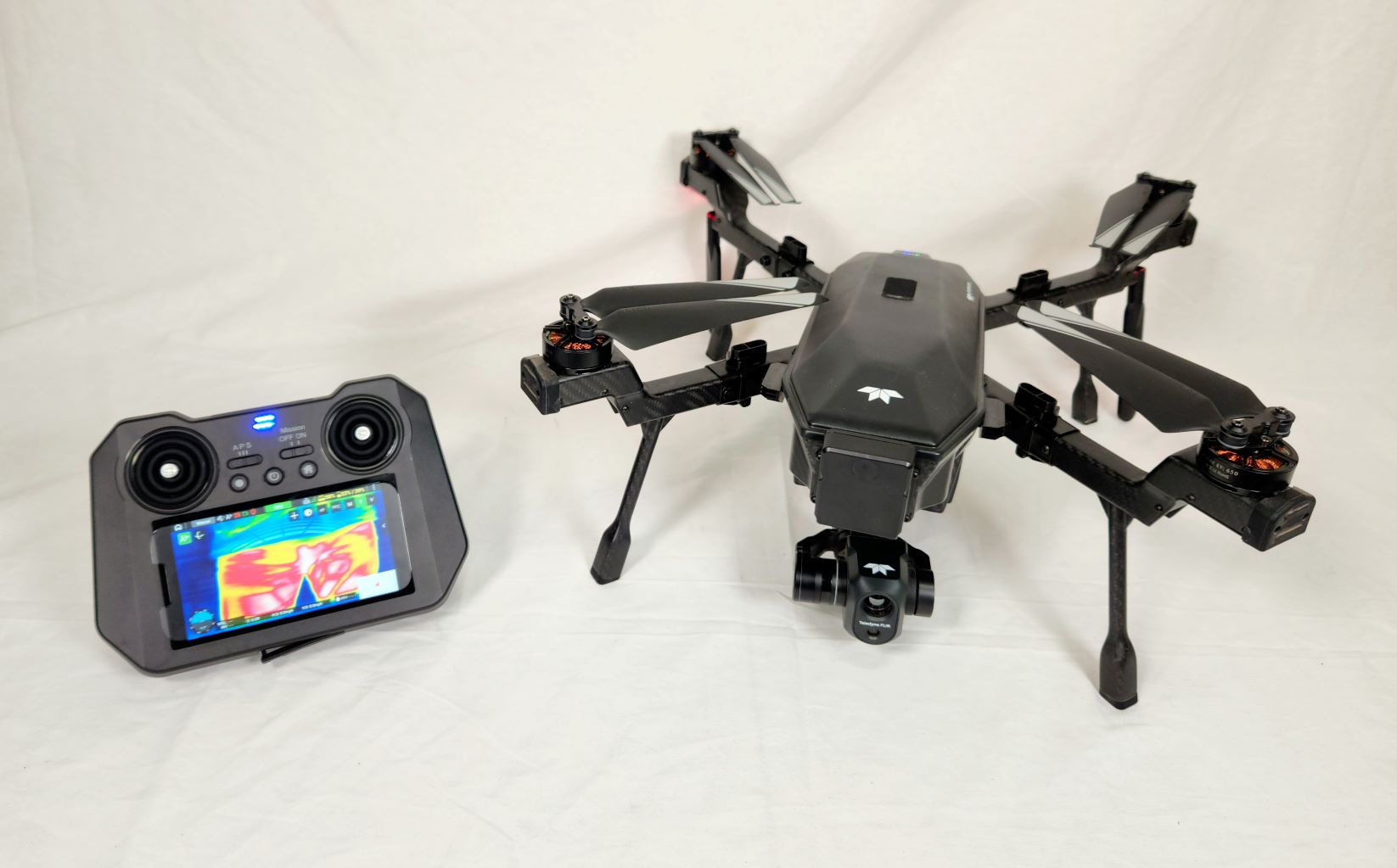

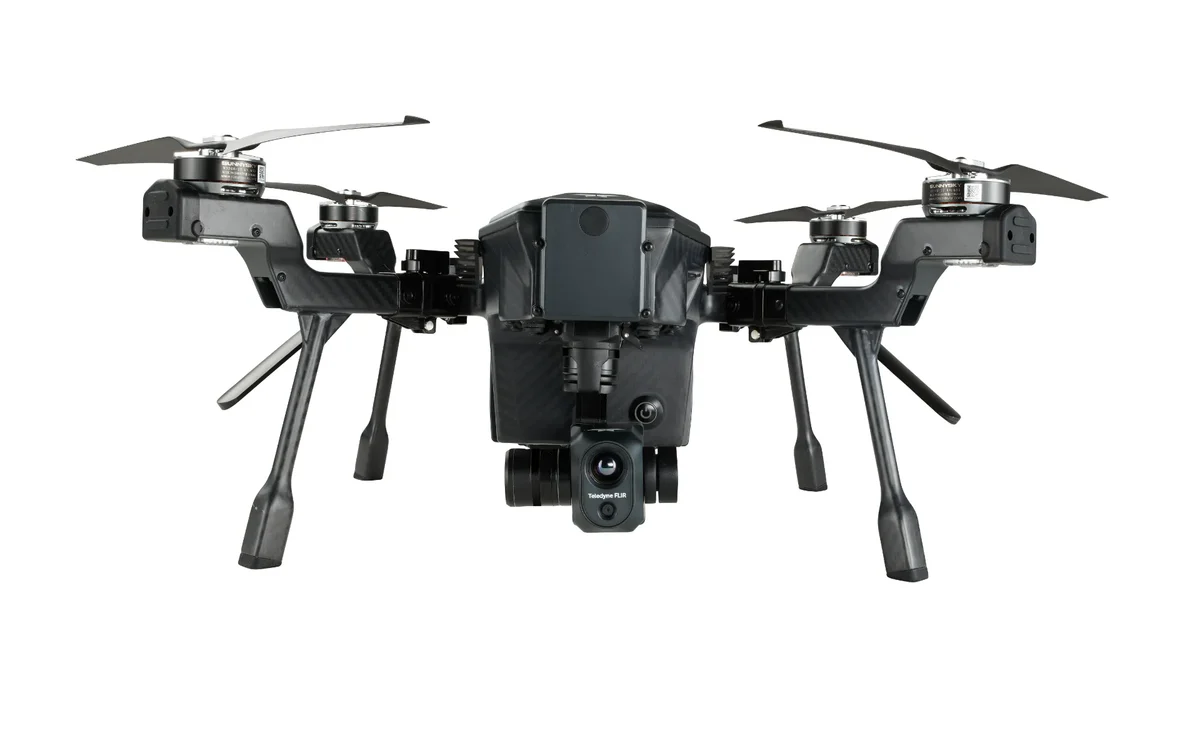

- Siras Aircraft

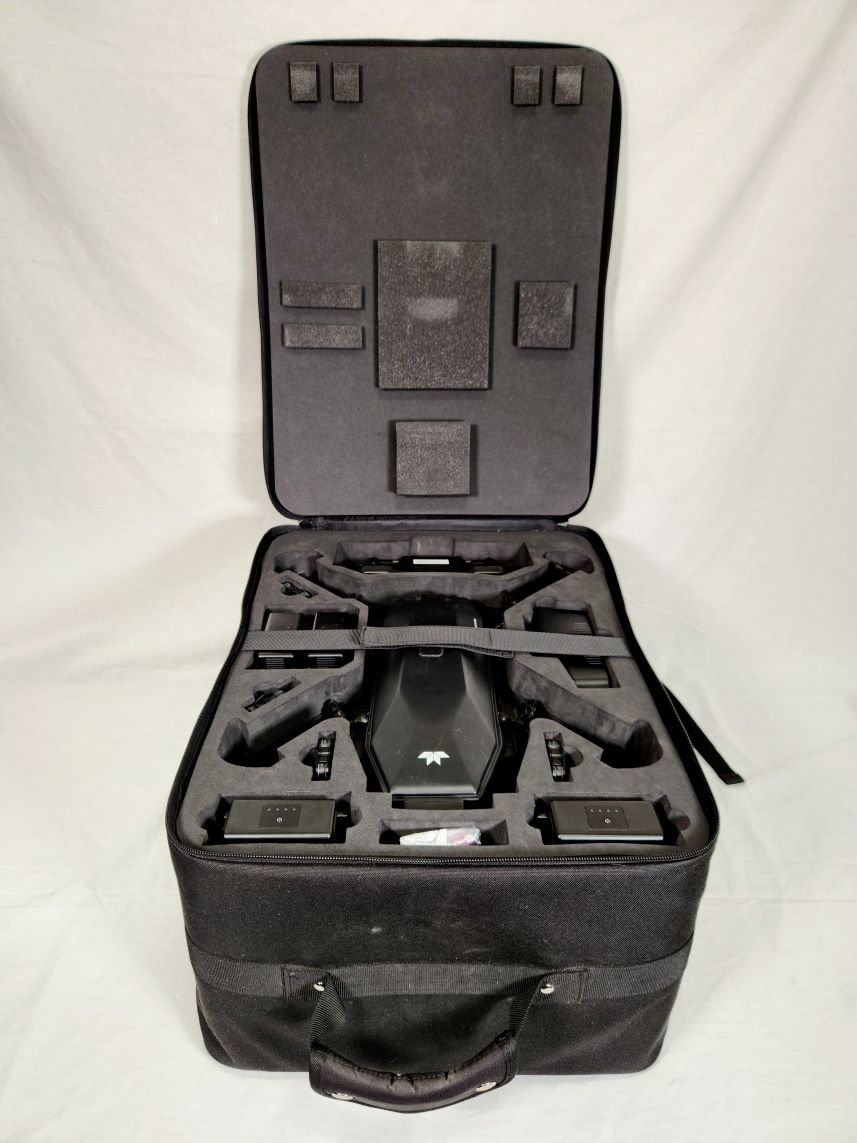

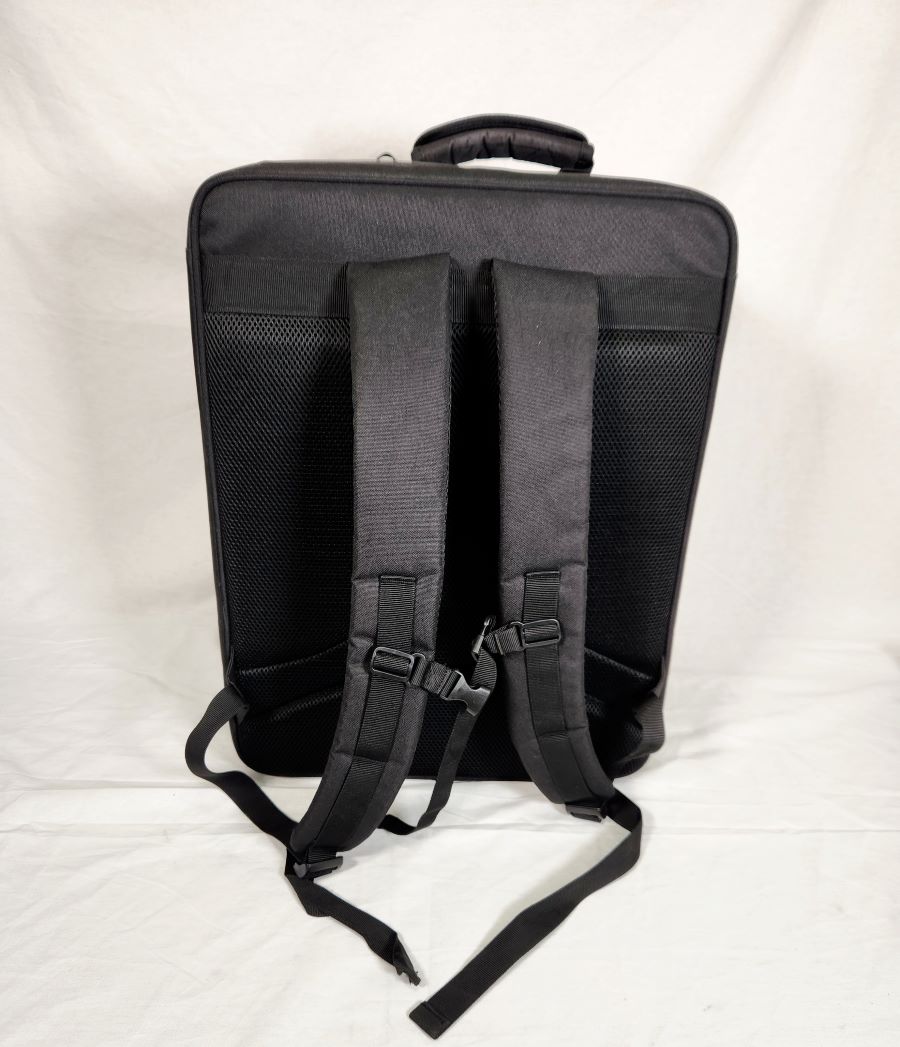

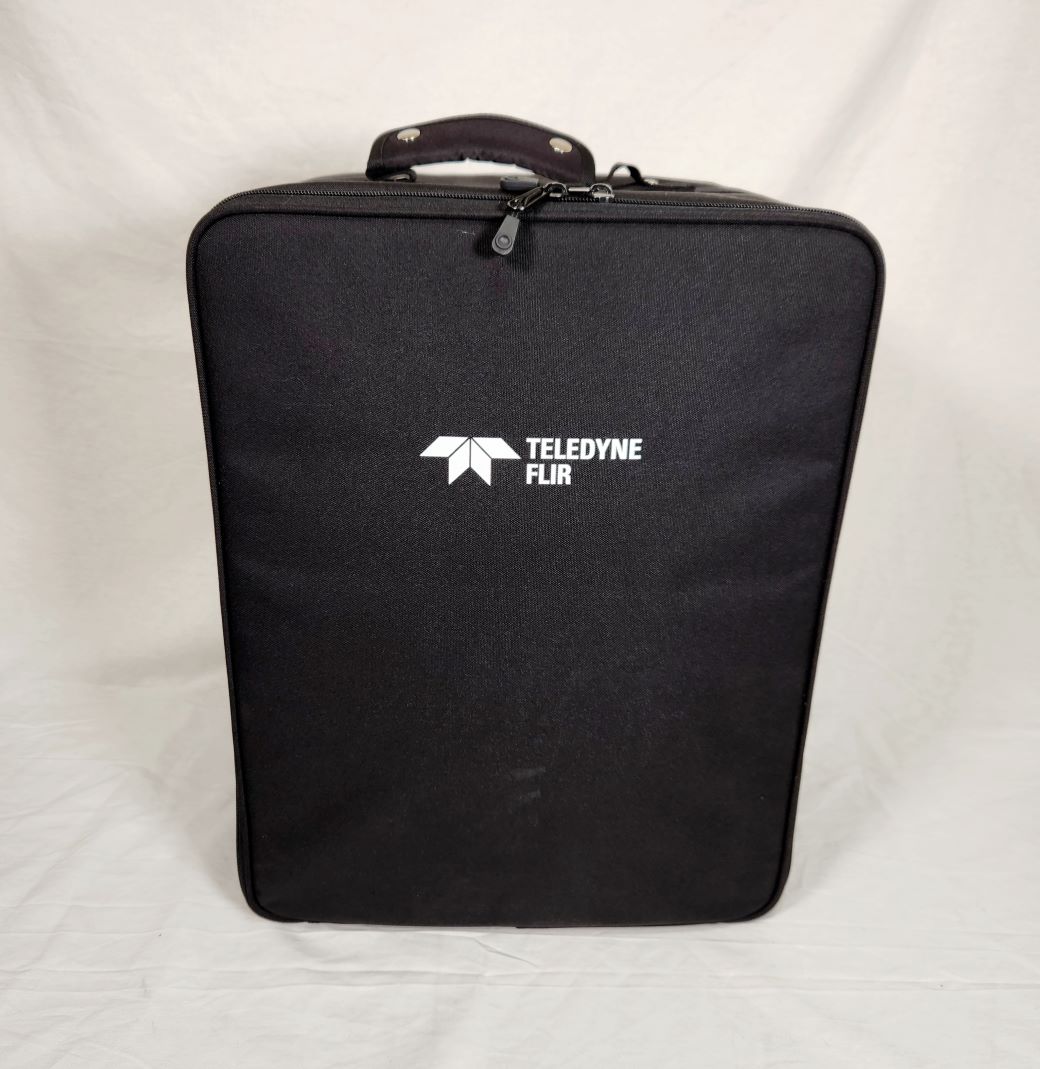

- Soft Backpack

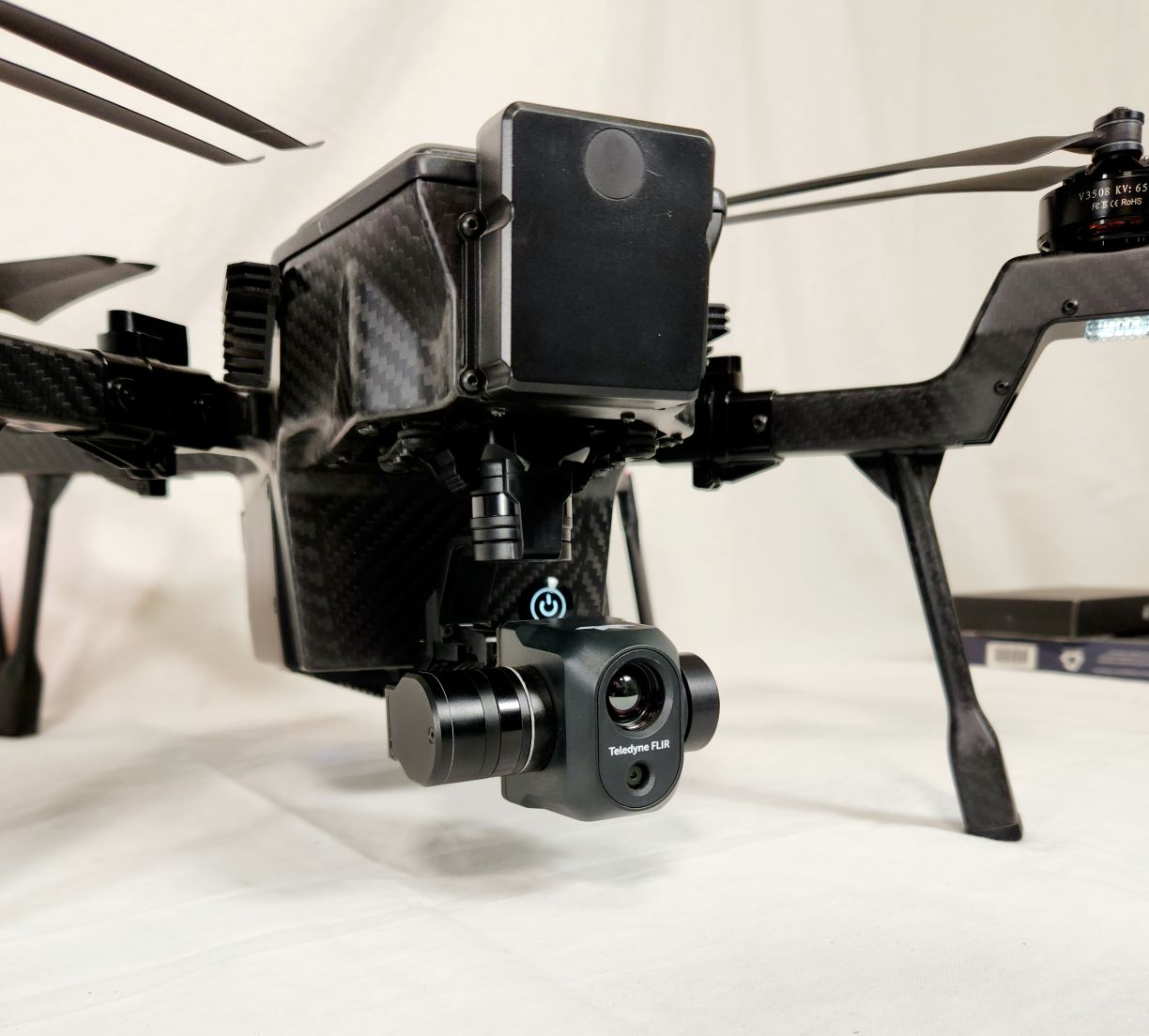

- TV128 640X512 Thermal Payload

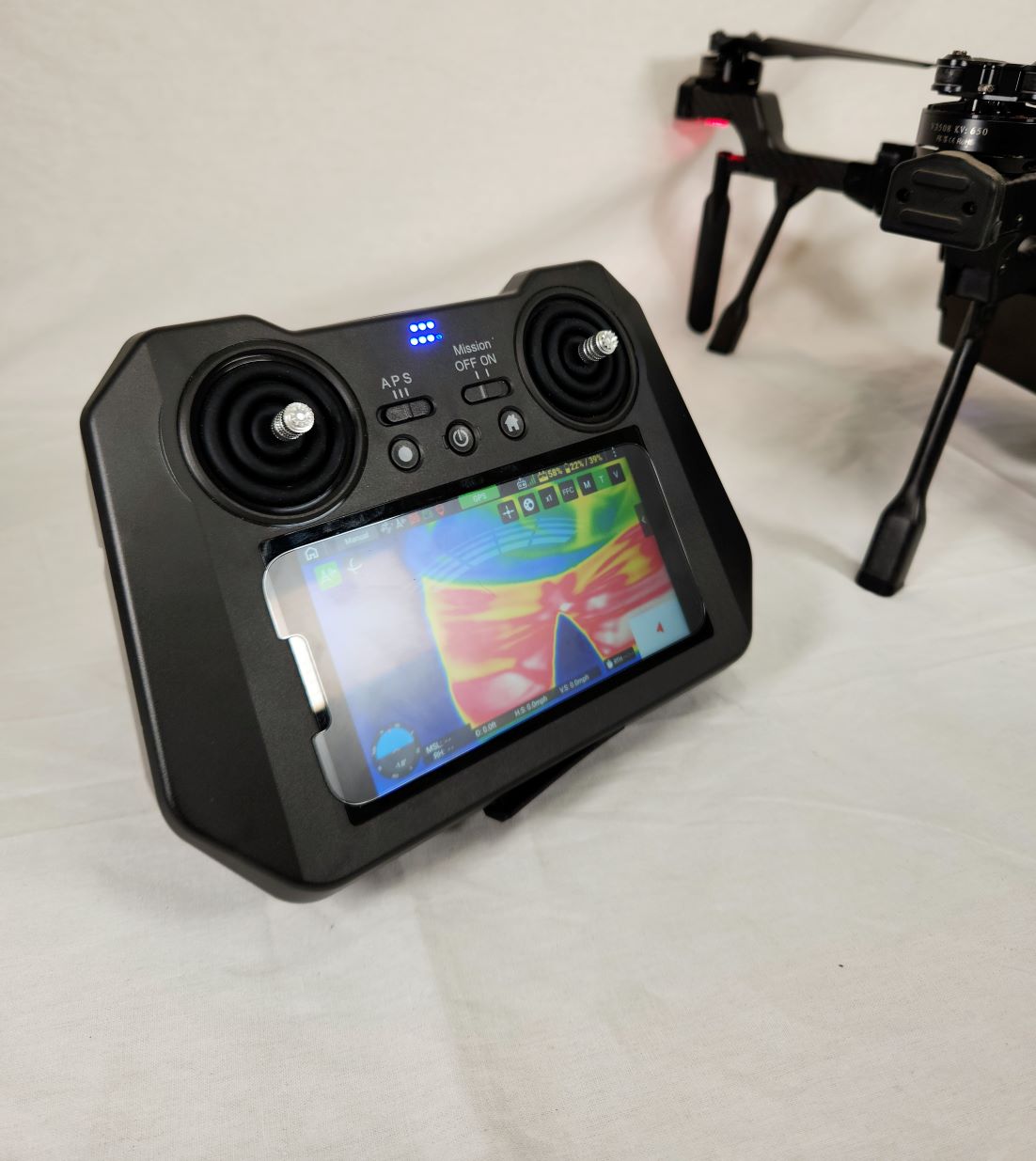

- Smart Controller
- Charging Hub
- 6 Batteries
- Spare Propellers
See and do more with clear thermal and visible imagery + FLIR MSX
Real time, high-resolution imagery provides
critical data for immediate decision support
and post-processing
- Measure temperature from the air
- Zoom up to 5x with 640×512 FLIR Boson+ thermal camera
- Pinpoint details with 16MP visible resolution and 128x zoom
- Compatible with AirData™ UAV and DroneLogbook™ software
SECURE FLIGHT DATA
FROM AN AFFORDABLE
AND FLEXIBLE AIRCRAFT
Operate in rugged environments with data
security and flexibility for future payload
needs
- Data safely stored on an onboard microSD card
- No online account is required for flight
- Future-proofed with quick-connect, swappable gimbal
- IP-54-rated dust and moisture resistance
FLY MISSIONS SAFELY WHERE
AND WHEN NEEDED
Get in the air quickly without restrictive geofencing and fly for up to 31 minutes
- Fly within two minutes of power on with no geofencing
- Maximize time in the air with 31-minute flight time and hot-swappable batteries
- Maintain connection around obstacles with dual-band 2.4/5.8 GHz
- Detect objects day and night with radar-based front collision avoidance
Aircraft
Collision Avoidance – Front Facing Radar: up to 30 m, when flying <5 m/sec speed
Ground detection via underside sensors
Default Ground Speed – 5 m/sec (11.2 mph)
Disconnect Return To Home – Yes
Foldable Props – Yes
Geo-Fencing – None
Hover Accuracy Vertical: ± 0.5 m (± 1.6 ft) Horizontal: ± 1.5 m (± 5 ft)
Ingress Protection – IP 54 (airframe, controller, and payload)
Maximum Ascent Speed – 6 m/sec (13.4 mph)
Maximum Decent Speed – 4 m/sec (9 mph)
Maximum Descent Speed – 4 m/sec (9 mph)
Maximum Ground Speed – 18 m/sec (40 mph)
Night Flight Beacons – Yes (red and white), on/off & blink options
Operating Environment – 10°C to 40°C (10 °F to 104 °F)
Take Off Readiness – 2 mins after power ON
Weight [including battery] – 3.1 kg (6.8 lb)
Wind Resistance – 10 m/s (22.4 mph)
Battery
25 Pct Battery Warning – Yes, visual and audio signal
Battery Power – 6,000 mAh Charging
Temperature Range (Celsius) – 5 °C to 50 °C (41 °F to 122 °F)
Charging Time – <45 min
Hot Swappable Batteries – Yes
Max Charging Current (A) – 6 A
Maximum Flight Time – 31 min (rated)
Maximum Hovering Time – 28 min (rated)
Return To Home – Yes. 25% Battery
Storage Temperature And Humidity – Room temperature and <70% is recommended
Imaging & Optical
EO Camera Optics – Effective Focal Length (EFL) 4.8 mm, 67° HFOV, F/# 1/2.3
EO Camera Resolution – 16 MP with 20 MP mapping mode, 128x zoom
FLIR MSX – Yes
IR Camera Optics – Effective Focal Length (EFL) 13.6mm, 32° HFOV, F/# 1.0
IR Camera Resolution – FLIR Boson, 640 x 512, radiometric, 5x zoom
IR Video Frame Rate – 60 Hz
Radiometric Features – Spot meter, Isotherms, Region of Interest (ROI)
Remote Controller And Transmission
Built-In Battery – 210 min
Display Brightness – 1,000 lumens
Display Latency – <1 sec
Layout – Mode 2 (default)
Operating Distance – 9 km (6 miles) – zero interference and no obstructions 3.2 km (2 miles) is typical limit in most settings
Operating Frequency – Dual Ban: 2.4 GHz / 5.8 GHz
Transmission Quality – 1080P, 30 fps
Storage
Internal Storage – Formatted 64 GB micro SD (provided with aircraft)SD Storage1 GB
